Mikrotik

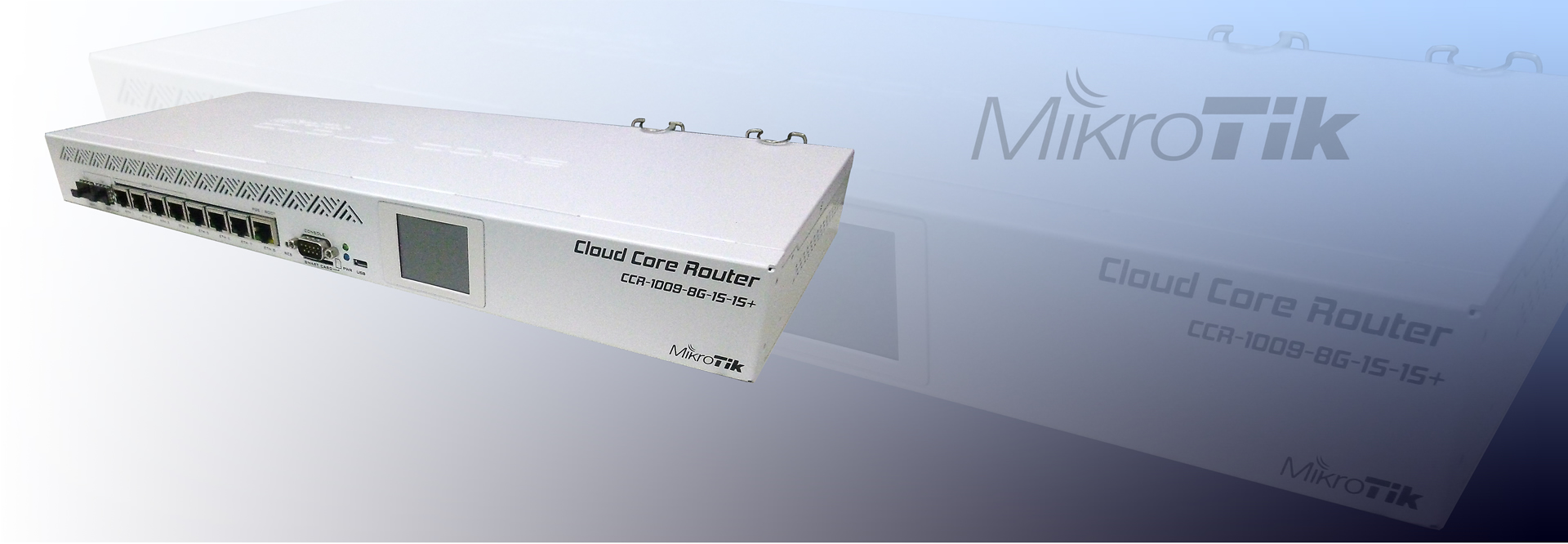

CCR1009-8G-1S-1S+
The CCR1009 is a powerful Ethernet router based on the cutting edge TILERA 9 core CPU.
CCR1009-8G-1S-1S+ comes with 2GB of RAM, eight Gigabit Ethernet ports (Ether1-4 are in a Switch group), one SFP port and one SFP+ port with 10G support (SFP module not included).
CCR1009-8G-1S-1S+ model have dual power supplies built in for redundancy (if one power line fails, the other one will take over automatically).
Also, CCR1009-8G-1S-1S+ supports a Smart card, to store your private key for use in all features that support Certificate based authentication.
SFP+ port supports SFP (1.25G) modules as well.
• PRODUCT SPECIFICATIONS •
Details:
Product code ………………………………………………. CCR1009-8G-1S-1S+
CPU nominal frequency ………………………………….. 1.2 GHz
SFP DDMI …………………………………………………..Yes
CPU core count ……………………………………………..9
Architecture ………………………………………………… TILE
Size of RAM ………………………………………………… 2 GB
10/100/1000 Ethernet ports ………………………………. 8
Number of USB ports ……………………………………… 1
Power Jack …………………………………………………. 2
Supported input voltage …………………………………… 14 V – 57 V
PoE in ………………………………………………………. Yes
Voltage Monitor ……………………………………………. Yes
CPU temperature monitor ………………………………… Yes
PCB temperature monitor ………………………………… Yes
Dimensions …………………………………………………. 444x175x47mm
Operating System ………………………………………….. RouterOS
Operating temperature range …………………………….. -20C .. +60C
License level ………………………………………………… 6
Current Monitor ……………………………………………. Yes
CPU …………………………………………………………. TLR4-00980CG-10CE
Max Power consumption ………………………………….. 35W
SFP ports ……………………………………………………. 1
SFP+ ports ………………………………………………….. 1
USB slot type ………………………………………………. microUSB type AB
Serial port …………………………………………………… RS232 + Header
Storage type ………………………………………………… NAND
Storage size ………………………………………………… 128 MB

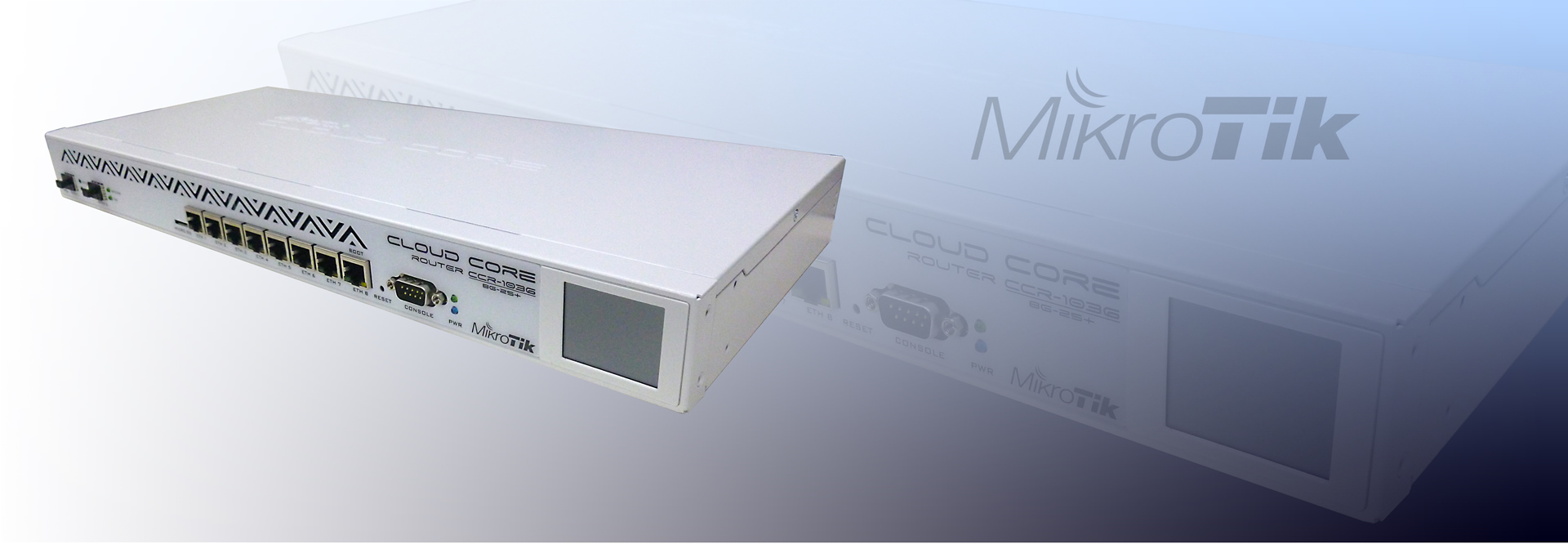

CCR1036-8G-2S+EM
Our fastest router has now become even better – the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model, and delivers the same performance, but now, ten gigabit links are possible.
The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports, a serial console and a USB port.
The CCR1036-8G-2S+ has two SODIMM slots, by default it is shipped with 4GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more). Also available now, the EM model with 16GB of RAM!
Supports both SFP (1.25G) and SFP+ (10G) modules.
• PRODUCT SPECIFICATIONS •
Details:
Product code …………………………………………. CCR1036-8G-2S+EM
SFP DDMI ……………………………………………..Yes
CPU nominal frequency …………………………….. 1.2 GHz
CPU core count ………………………………………..36
Architecture …………………………………………… TILE
Size of RAM …………………………………………… 16 GB
10/100/1000 Ethernet ports …………………………. 8
Number of USB ports ………………………………… 1
Number of Memory Cards …………………………… 1
Memory card type ……………………………………. microSD
Power Jack ……………………………………………. 1
Supported input voltage ……………………………… 18 V – 28 V
Voltage Monitor ………………………………………. Yes
CPU temperature monitor …………………………… Yes
PCB temperature monitor …………………………… Yes
Dimensions ……………………………………………. 355x145mm55mm
Operating System …………………………………….. RouterOS
Operating temperature range ……………………….. -20C .. +60C
License level …………………………………………… 6
Current Monitor ………………………………………. Yes
CPU ……………………………………………………. TLR4-03680CG-12CE-A3b
SFP+ ports …………………………………………….. 2
USB slot type …………………………………………. microUSB type AB
Serial port ……………………………………………… RS232
Storage type …………………………………………… NAND
Storage size …………………………………………… 1 GB

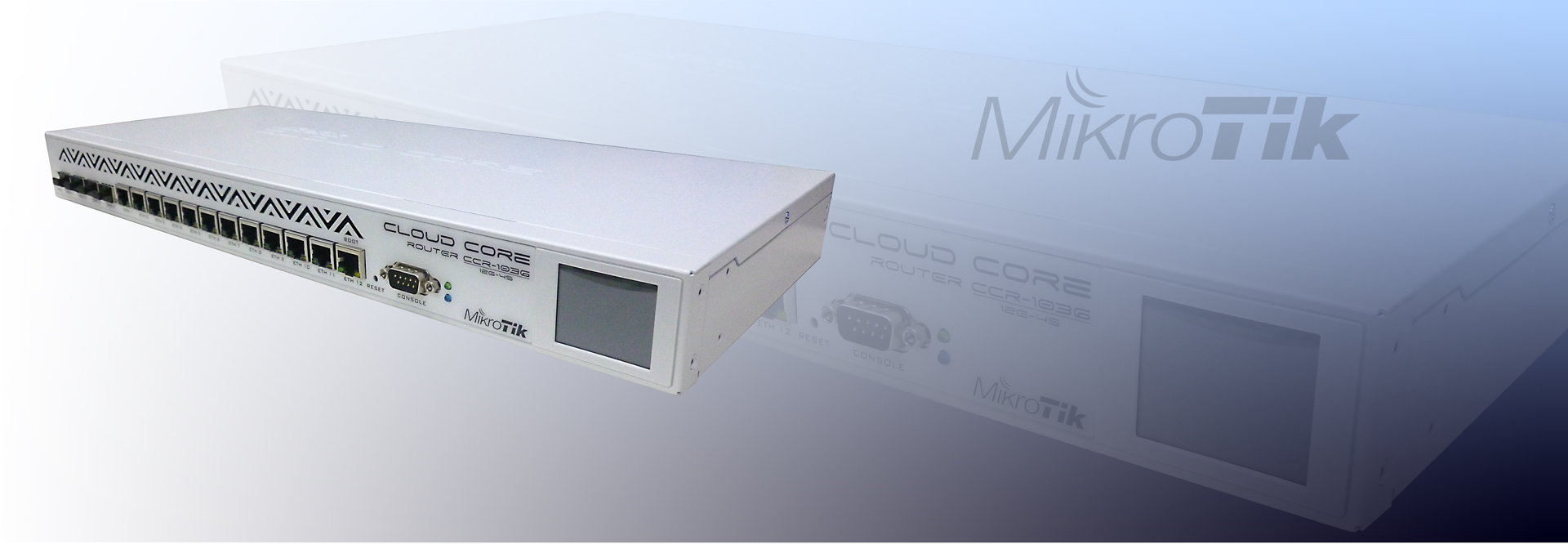

CCR1036-12G-4S
CCR1036-12G-4S is an carrier grade router with a cutting edge 36 core Tilera CPU! Unprecedented power and unbeatable performance – this is our new flagship device. Over 20 times faster than our previous top model, the Cloud Core supports throughput of up to 24 million packets per second, or up to 16 gigabits – full wire speed.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, serial console and a USB port. A color touchscreen displays device status, traffic graphs, or provide access to simple configuration options.
It has two SODIMM slots, by default it is shipped with 4GB of RAM, but has no memory limit in RouterOS, so will accept and utilize 16GB or more. It comes with power supply and 1U rackmount case.
The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included).
• PRODUCT SPECIFICATIONS •
Details:
Product code …………………………………………. CCR1036-12G-4S
SFP DDMI ……………………………………………..Yes
CPU nominal frequency …………………………….. 1.2 GHz
CPU core count ………………………………………..36
Size of RAM …………………………………………… 4 GB
Architecture …………………………………………… TILE
10/100/1000 Ethernet ports …………………………. 12
Number of USB ports ………………………………… 1
Power Jack ……………………………………………. 1
Supported input voltage ……………………………… 13 V – 30 V
Voltage Monitor ………………………………………. Yes
PCB temperature monitor …………………………… Yes
CPU temperature monitor …………………………… Yes
Dimensions ……………………………………………. 355x145x55cm
Operating System …………………………………….. RouterOS v6 (64bit)
Operating temperature range ……………………….. -20C .. +60C
License level …………………………………………… 6
Current Monitor ………………………………………. Yes
CPU ……………………………………………………. TLR4-03680CG-12CE-A3b
Max Power consumption …………………………… 69W
SFP ports …………………………………………….. 4
USB slot type …………………………………………. microUSB type AB
Serial port ……………………………………………… RS232
Storage type …………………………………………… NAND
Storage size …………………………………………… 1 GB

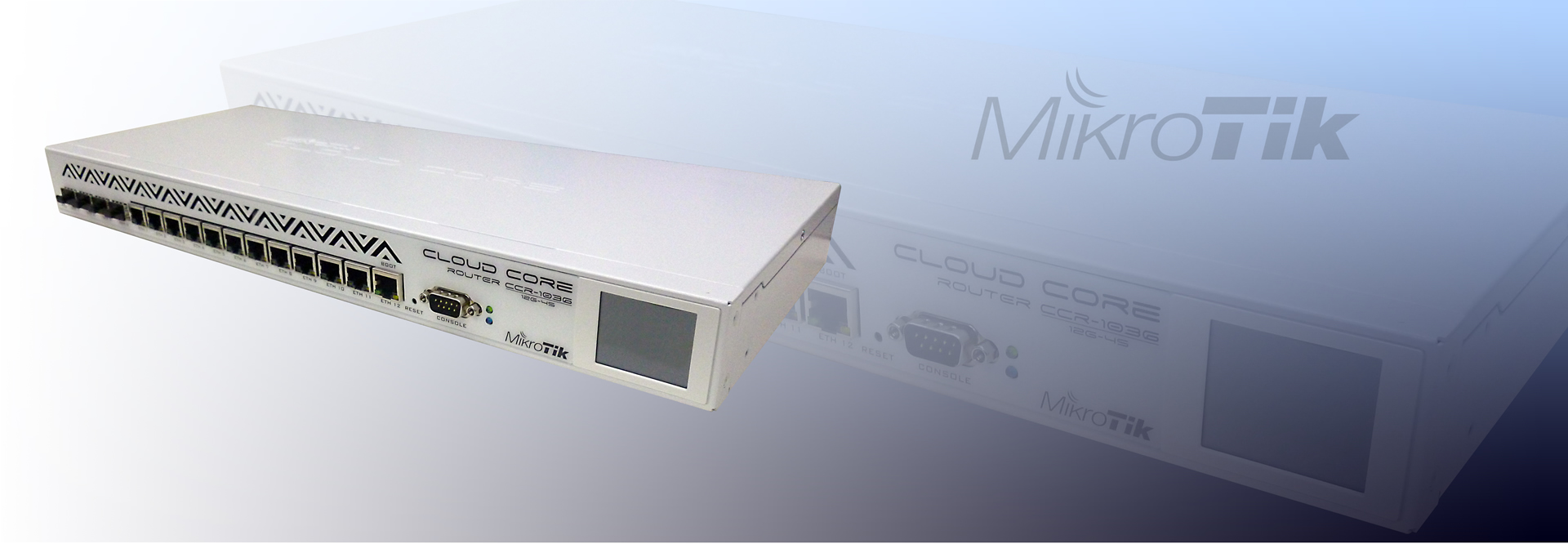

CCR1036-12G-4S-EM
CCR1036-12G-4S-EM is an carrier grade router with a cutting edge 36 core Tilera CPU! Unprecedented power and unbeatable performance – this is our new flagship device. Over 20 times faster than our previous top model, the Cloud core supports throughput of up to 24 million packets per second, or up to 16 gigabits – full wire speed.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, serial console and a USB port. A color touchscreen displays device status, traffic graphs, or provide access to simple configuration options.
It has two SODIMM slots, by default it is shipped with 16GB of RAM, but has no memory limit in RouterOS. It comes with power supply and 1U rackmount case.
The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included).
• PRODUCT SPECIFICATIONS •
Details:
Product code …………………………………………. CCR1036-12G-4S-EM
CPU nominal frequency …………………………….. 1.2 GHz
SFP DDMI ……………………………………………..Yes
CPU core count ………………………………………..36
Architecture …………………………………………… TILE
Size of RAM …………………………………………… 16 GB
10/100/1000 Ethernet ports …………………………. 12
Number of USB ports ………………………………… 1
Power Jack ……………………………………………. 1
Supported input voltage ……………………………… 12 V – 28 V
Voltage Monitor ………………………………………. Yes
PCB temperature monitor …………………………… Yes
CPU temperature monitor …………………………… Yes
Dimensions ……………………………………………. 355x145x55cm
Operating System …………………………………….. RouterOS v6 (64bit)
Operating temperature range ……………………….. -20C .. +60C
License level …………………………………………… 6
Current Monitor ………………………………………. Yes
CPU ……………………………………………………. TLR4-03680CG-12CE-A3b
Max Power consumption …………………………… 60W
SFP ports …………………………………………….. 4
USB slot type …………………………………………. microUSB type AB
Serial port ……………………………………………… RS232
Storage type …………………………………………… NAND
Storage size …………………………………………… 1 GB
